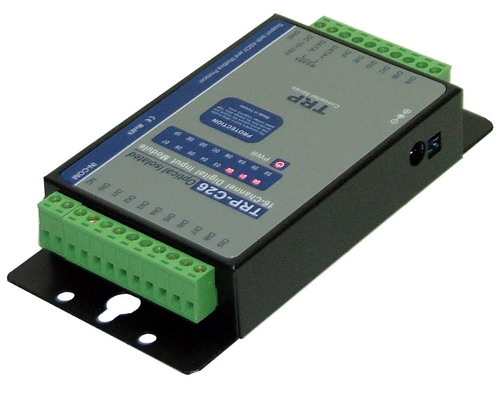

Trycom TRP-C26
Controleur 16 entrées numériques vers RS485 Ascii/Modbus
- Power Input Voltage: DC +10V to +30V.
-
- Protocol: ASCII and Modbus RTU.
-
- Input channel: 16 digital input channels with counter.
-
-
- Input digital input counter: 0~65535.
-
-
- Input optical isolation: 3750 Vrms.
-
-
- Input logical level 0 +1V (max).
-
-
- Input logical level 1 +4.0V ~ +30V.
-
-
- Communication interface: RS-485.differential 2 half.duples wires.
-
-
- Communication speed: Baud rate from 1200bps to 115.2Kbps.
-
-
- Data format: Data bit: 8, Parity Check: None, Stop Bit: 1 .
-
-
- Input impedance: 3K?.
-
-
- Inputs can be use as counter channel: 16.
-
-
- Counter frequency: 100 Hz.
-
-
- Dual watchdog Hardware reset circuit, module and host operating status.
-
-
- Signal LED: Power on, all input channels
-
-
- Power supply: Screw terminal, or standard external DC adapter
-
-
- Power consumption: 1.5W (max)
-
-
- Operating environment: -10 to 50?.
-
-
- Storage temperature: -20 to 70?.
-
-
- Humidity: 10-90% non-condensing.
-
-
- Dimension: 151mm X 75mm X 26mm .
-
-
- Weight: 395g .
