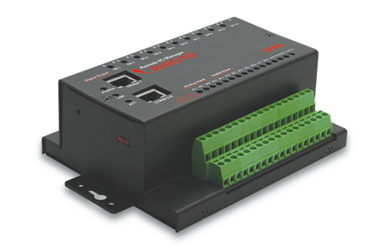

Sena RHIO 10
Contrôleur d´entrées/sorties sur Ethernet. IP
|
- Digital Input
-
- * Number of channels: 12
- * Input type: Voltage
- * Input circuitry: Optically isolated photo-coupler
- * Input range: 0V ~ ±24V
- * OFF 0V ~ ±1.2V, ON ±3.3V ~ ±24V
- * Sampling rate: 20ms
- * Isolation voltage: 5KV
-
- Digital Output
-
- * Number of channels: 10
- * Output type: Relay
- * Rated load: 3A/240VAC
- * Insulation resistance: 1000?Min (DC500V)
- * Electrical life expectancy: 100,000 operations
- * Contact Resistance: 100ms Max
- * Isolation voltage (coil and contact): 4KV
- * Reaction within 10ms
-
- Analog Input
-
- * Number of channels: 4
- * Effective resolution: 10-bit
- * Input type: Voltage, Direct coupling
- * Input range: 0V ~Aref (Analog reference voltage, 2~5V)
- * Sampling rate: 1000 samples/sec
-
- Protocols
-
- * ARP, IP/ICMP, TCP
- * Telnet, DHCP client, PPPoE
-
- Management
-
- * Rhio Manager Windows Utility, Serial Console or Telnet
-
- Software Support
-
- * Windows MFC DLL library
- * I/O configuration, I/O status monitoring/control
-
- Diagnostic LED
-
- * Power, Link, Act
- * Digital Output, 1~10
- * Digital Input, 1~12
- * Analog Input, 1~4
-
- Power 9V ~ 8VDC, Max. 5W
- Environmental Operating temperature: 0'C to 50'C
- Storage temperature: -20'C to 66'C
- Humidity: 90% Non-condensing
- Physical Properties
- Dimension (LxWxH)
- 137 x 111 x 58 (mm)
- 5.4 x 4.4 x 2.3 ( in.)
- Weight: 730g
