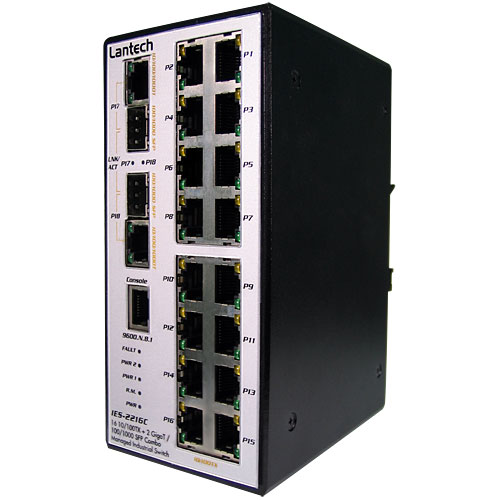

Lantech IES-2216C
Switch 18 ports dont 16 x 10/100 Tx et 2 x fibres dual mode mode SFP
|
Management
SNMP v1 v2c, v3/ Web/Telnet/CLI
System Interface/Performance
RJ-45 port supports Auto MDI/MDI-X Function
SFP(Mini-GBIC) supports 100/1000 Dual Mode
Store-and-Forward Switching Architecture
Back-plane (Switching Fabric): 7.2Gbps
VLAN
Port Based VLAN
Support 802.1 Q Tag VLAN
GVRP
Double Tag VLAN (Q in Q)*
Private VLAN**
Security
Port Security : MAC address entries/filter
IP Security: IP address security management to
prevent unauthorized intruder.
Login Security: IEEE802.1X/RADIUS
Provide DHCP Client/ DHCP Server functions
Support TFTP firmware update, TFTP backup and restore.
QoS (Quality of Service)
Support IEEE 802.1p Class of Service
Per port provides 4 priority queues
Port Base, Tag Base, IPv4 Type of service, IPv4/IPv6 Different Service Priority
X-Ring
X- Ring, Dual Homing, Couple Ring and Central Ring Topology
Provide redundant backup feature and the recovery time below 20ms
Port Trunk with LACP: 4 Trunk groups/Maximum 4 trunk members
Support SNTP to synchronize system clock in Internet
Support SMTP Server and 6 e-mail accounts for receiving event alert
Support IGMP snooping v1,v2, v3; 256 multicast groups and IGMP query
Provide DNS client feature and support Primary and Secondary DNS server
Support 3 port mirroring types- RX ;TX and both packet
Support binary configuration file for system quick installation
Support LLDP to allow switch to advise its identification and capability on the LAN
