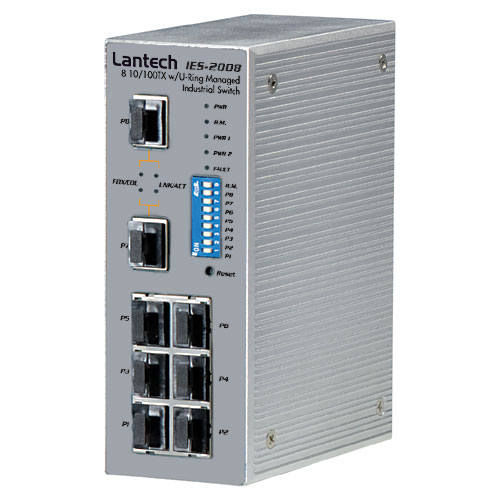

Lantech IES-2008 manageable
Switch industriel 8 ports 10/100TX SNMP/WEB -10 à 60 C

Management
SNMP v1 v2c, Web interface management
VLAN
Port based VLAN
IEEE802.1Q Tag VLAN
Security
IP security: Support 10 IP addresses that have permission to access the switch management
System Event Log (System log server/Client, SMTP email Alarm, Relay Alarm output System event
SNMP trap
QoS (Quality of Service):
The quality of service determined by port, Tag and IPv4 Type of service
CoS (Class of Service):
Support IEEE802.1p class of service,
per port provides 4 priority queues
Port Base,Tag Base and type of service priority


Spanning tree
Support IEEE802.1d Spanning Tree
Support IEEE802.1w Rapid Spanning Tree
Bandwidth Control
Ingress Packet Filter and Egress Rate Limit
Broadcast/ Multicast Packet Filter Control
Port Mirror: Monitor traffic in switched networks
TX packet only
Both of TX and RX Packet

IGMP snooping with Query mode for Multi Media Application
TFTPO Firmware Update and System Configure Restore and Backup
X-ring
Support X-Ring, Dual Homing, and Couple Ring
Provide redundant backup recovery time below 300ms
Provide DHCP client function to obtain IP address from DHCP server

LANTECH
