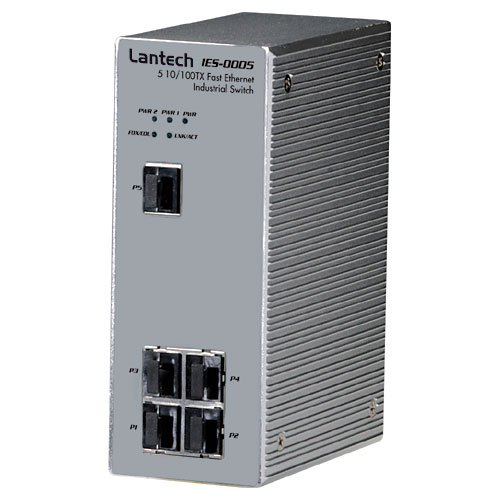

Lantech IES-0005T
Switch Industriel 5 ports 10/100 Tx
|
- Standard IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- IEEE802.3x Flow Control and Back-pressure
- Switch Architecture Back-plane (Switching Fabric): 1.6Gbps
- Packet throughput ability (Full-Duplex): 2.38Mpps @64bytes
- Transfer Rate 14,880pps for Ethernet port
- 148,800pps for Fast Ethernet port
- Memory Buffer 384Kbits(IES-0005T),448 Kbits(IES-0005T/E)
- MAC address 2K MAC address table
- Connector 10/100TX: 5 x RJ-45 with auto MDI/MDI-X function
- Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable
- EIA/TIA-568 100-ohm (100m)
- 100Base-TX: 2-pair UTP/STP Cat. 5 cable
- EIA/TIA-568 100-ohm (100m)
- LED Per port: Link/Activity (Green), Full duplex/Collision (Orange)
- Per unit: Power(Green),Power 1(Green),Power 2(Green)
- Protocol CSMA/CD
- Reserve polarity protection Present
- Overload current protection Present
- Power supply DC 12~48V, Redundant power with polarity reverse protect function and removable terminal block
- Power consumption 2.93 Watts
- Install Provides DIN rail kit and wall mount ear for 3-way install
- Operation Temp. -10ºC to 60ºC (Standard) ; -40 ~ 75ºC (E-model, Wide Operating
- Temperature)
- Operation Humidity 5% to 95% (Non-condensing)
- Storage Temp. -40°C to 85°C
- Case Dimension Metal case. IP-30, 30mm (W) x 95mm (D) x 140mm (H)
- EMI FCC Class A, CE EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE EN-61000-4-4 (EFT), CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS), CE EN61000-4-8, CE EN61000-4-11, CE EN61000-4-12, CE EN61000-6-2, CE EN61000-6-4
- Safety UL, cUL, CE/EN60950-1
- Stability testing IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
- Installation DIN Rail and Wall Mount Design
