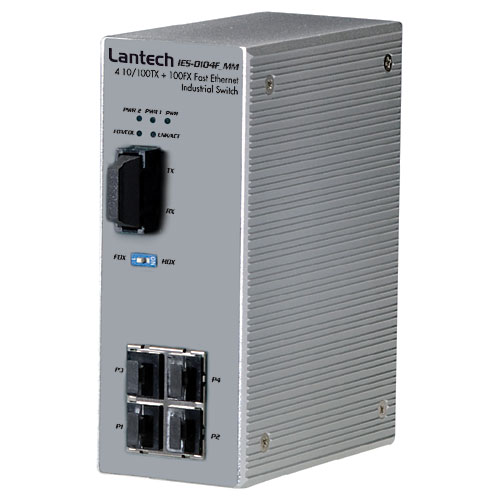

Lantech IES-0104F-SC30
Switch industriel 4 ports cuivre + 1 port fibre SC 30 km
 |
- * 4-Port 10/100TX + 1-Port 100FX industrial switch
- * Store-and-Forward switching architecture
- * Conforms to IEEE 802.3 10Base-T, 802.3u 100Base-TX/100Base-FX
- * IEEE 802.3x flow control support
- * Flow control on full-duplex
- * Back pressure on half-duplex
- * RJ-45 port support auto MDI/MDI-X function
- * 512Kbytes Embedded memory
- * Wide-range redundant power design
- * 1K MAC address table
- * DIN rail and 3-way wall mount design
- * Meets IP-30 case protection
Standard IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX/FX Fast Ethernet
IEEE802.3x Flow Control and Back-pressure
Technology Store and forward switching architecture
Transfer Rate 14,880 pps for Ethernet port and 148,800 pps for Fast Ethernet port
Memory Buffer 512Kbits
MAC address 1K MAC address table
Connector 10/100TX: 8 x RJ-45 with auto MDI/MDI-X function
Network Cable 10Base-T: 2-pair UTP/STP Cat. 3, 4, 5 cable
EIA/TIA-568 100-ohm (100m)
100Base-TX: 2-pair UTP/STP Cat. 5 cable
EIA/TIA-568 100-ohm (100m)
Optical Cable SC (Multi-mode): 50/125um~62.5/125um
SC (Single mode): 9/125um
Available distance: 2KM (Multi-mode) / 30KM (single-mode)
Wavelength: 1310nm (multi-mode/ single mode)
LED Per port: Link/Activity (Green), Full duplex/Collision (Yellow)
Per unit: Power(Green),Power 1(Green),Power 2(G
Protocol CSMA/CD
DIP switch OFF: Fiber Full-duplex mode(Default)
ON: Fiber Half-duplex mode
Back-plane 1.0 Gbps
Packet throughput ability 0.74Mpps @64bytes (5TX)
Power supply DC 12 ~48V, Redundant power with polarity reverse protect function and connective removable terminal block for master and slave power.
Power consumption 4.37 Watts
Install Provides DIN rail kit and wall mount ear or DIN-type cabinet install
Operation Temp. -10ºC to 60ºC(Standard) ; -40 ~ 75 ºC (E-Model, Wide Operating
Temperature)
Operation Humidity 5% to 95% (Non-condensing)
Storage Temp. -40°C to 85°C
Case Dimension IP-30, 54mm (W) x 105mm (D) x 135mm (H)
EMI FCC Class A,CE EN61000-4-2,EN61000-4-3,EN-61000-4-4,EN-61000-4-5
CE EN61000-4-6,EN61000-4-8,EN61000-4-11,EN61000-4-12,
CE EN61000-6-2, CE EN61000-6-4
Safety UL, cUL, CE/EN60950-1
Stability testing IEC60068-2-32 (Free fall), IEC60068-2-27 (Shock), IEC60068-2-6 (Vibration)
