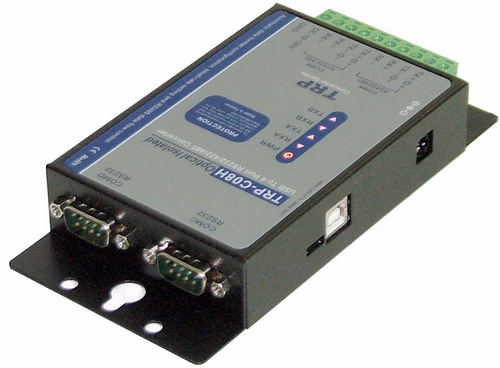

Trycom TRP-C08H
Convertisseur isolé USB vers 4 ports série

Convertisseur USB vers 2 ports série RS232 et 2 ports RS422/RS485.

Le trycom TRP-C08H permet de connecter simultanément à un PC doté d'une interface USB jusqu'à 4 périphériques en interface série : 2 en RS232 et 2 en RS422 ou RS 485.

L'interface série RS232 supporte tout type de connexion PC DTE.

• USB interface: Fully compliant with V1.0, 2.0 specification.
• Dual RS-232 Output: TX, RX, RTS, CTS, DTR, DSR, And DCD , RI .
• Dual RS-422/485 output:
• RS-422 signal: Differential 4 full-duplex wires (TX+, RX+, TX- , RX-).
• RS-485 signal: Differential 2 half-duplex wires. (D+, D-)
• Cable: USB type A to type B.
• Data format: Asynchronous data with all common combination of bits, parity, stop
• Parity type: None, odd, even mark, space.
• Stop bits: 1, 1.5, 2.
• Data bit: 5, 6, 7, 8 or 16.
• Communication speed: 75~256Kbps.
• RS-422/485 line protection: Against surge, short circuit, and voltage peak.
• Distance: 1200M
• Connection type: Screw terminal for maximum AWG #12~30 wires.
• Signal LED: Power on, TXA, RXB.TXB, RXB.
• Power Supply: Screw terminal, or external DC plug, or USB power.
• External DC Power consumption: 12V/220mA.
• Isolation:3000V DC.
• Operating environment: -10 to 50? .
• Storage temperature: -20 to 70?.
• Humidity: 10-90% non-condensing.
• Dimension: 151mm X 75mm X 26mm .
• Weight: 395g .
