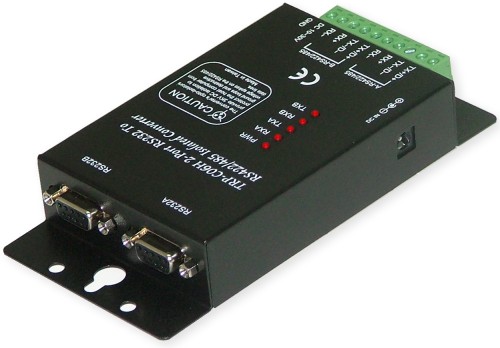

Trycom TRP-C06H
Convertisseur Double serie RS232 vers RS422/RS485 isolé
- Power input voltage: DC +10V to +30V.
-
-
- Host connection: 2 standard D-Sub 9 pin female connectors.
-
-
- RS-232 interface: Standard D-Sub 9 pin female connector.
-
-
- RS-232 signal: TXD, RXD, GND.
-
-
- RS-422/485 interface: Industrial plug-in screw terminal.
-
-
- RS-485 signal: Differential 2 half-duplex wires (D+, D-).
-
-
- RS-422 signal: Differential 4 full-duplex wires. (TX+, RX+, TX-, RX-) .
-
-
- Communication speed: Form 300bps to 115.2Kbps auto detecting.
-
-
- RS422/485 line protection: Against surge, short circuit, voltage peak.
-
-
- Distance: Up to 4000ft (1200M).
-
-
- Isolation voltage: 3000V DC.
-
-
- Plug-in screw terminal wiring: Accepts AWG #12 ~ 30 wires.
-
- Signal LED: Power on, TXA, RXA, TXB, RXB.
-
-
- Power supply: Screw terminal, or external DC adapter.
-
-
- Power consumption: 1.3W.
-
-
- Operating environment:-10 to 50? .
-
-
- Storage temperature: -20 to 70? .
-
-
- Humidity: 10-90% Non-condensing.
-
-
- Dimension: 151mm X 75mm X 26mm .
-
-
- Poids: 375g .
TRYCOM
|
